Square Comfort for LoRaWAN

MULTI-SENSOR WITH HUMIDITY, TEMPERATURE, and GEOPOSITIONING
Coming soon - pre-order now!
The ultimate room sensor - comfort version

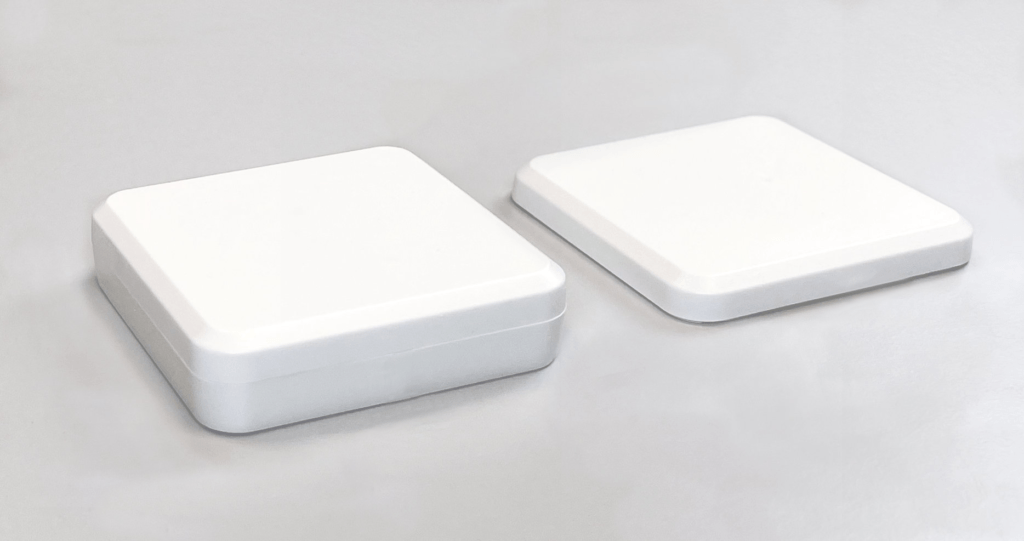

square normal and slim 1
square normal and slim overlay
Blend-in design
No maintenance (10 years)
Simple installation & mounting
Location-aware
Long-range (2 km)
Built-in data memory
Indoor or outdoor protected use

The Square Comfort is a multi-sensor with humidity, temperature, and geopositioning for LoRaWAN.

With its low power consumption and long battery life of up to 10 years, it is the ideal choice for monitoring the climate of your property.

The sensor is also location-aware, making it ideal for mobile applications or notifying you if the sensor has been moved or removed. This functionality also simplifies installation and system configuration in the field.

Square Comfort is a family of ultra-compact, advanced sensor designed for precise temperature and humidity monitoring in both indoor and sheltered outdoor settings.
The standard Square Comfort (S) dimensions are 58 x 58 x 7 mm, including a durable 750 mAh battery expected to last over 10 years using pre-defined configuration profiles.

Square Comfort is also available in a high precision (P) version and a data logger (DL) version with the dimensions 58*58*15 mm using a 4.0 Ah battery delivering more than 10 years battery life even with very demanding configuration profiles.

The device features NFC for easy local management with an NFC-equipped Android phone and a WiFi receiver for geo-positioning.

Benefits & Use Cases

Square Comfort is highly beneficial for property management, offering precise climate monitoring in buildings, greenhouses, sheltered outdoor environments, and vehicles. Its compact design and accurate sensors make it ideal for maintaining optimal temperature and humidity levels, which is crucial for comfort and health in residential and commercial properties. In greenhouses, it assists in creating the perfect conditions for plant growth.

The built-in data memory and the temperature calibration features combined with the ISO 17 025 certified Sensirion SHT43 temperature & humidity sensor used in the Square Comfort Data logger version is suitable for specific applications as cold chains.

For sheltered outdoor areas and vehicles, its robust design and customization options ensure reliable performance under various conditions. Square Comfort's versatility makes it an essential tool in a wide range of environmental monitoring applications.

Application
Application Room sensor, Tracking, Temperature/Humidity, Asset management, Cold chain data logger
Benefits
Benefits Blend-in design, No maintenance (10 years), Simple installation & mounting, Location-aware, Long-range (2 km), Built-in data memory
In/Outdoor usage Indoor or outdoor protected use
Features
Sensor Humidity, Temperature, Geolocation
Accessories Cloud Positioning Service
Configuration LoRaWAN OTAA, NFC
Geopositioning WiFi
Connectivity data
Frequency EU (868 MHz) or US (915 MHz)
Protocols / Connectivity LoRaWAN, NFC
LoRaWAN version V 1.0.4
LoRaWAN class Class A
Sensor data
Temperature accuracy +/- 0.2 °C
Humidity accuracy 1.8% RH
Sensor circuit Sensirion SHT40
Power supply
Powered by Non-replaceable battery, Built-in battery (LiMn02)
Operating Conditions
IP Class 62
Operating range -20 - +60 °C
Mechanical data
Depth (mm) 7 or 15
Width (mm) 58
Height (mm) 58
Internal
Yggio decoder Unknown
Manufacturer Sensative
Country of origin Poland
